Cudy 10-Port Unmanaged PoE+ Switch | dynacor.co.za

CUDY

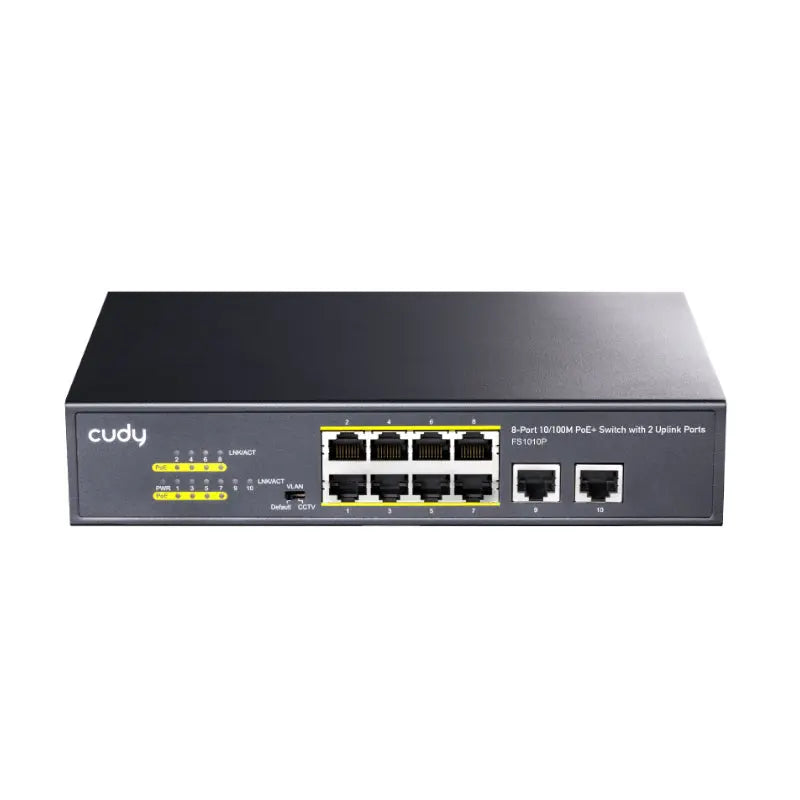

Cudy 10-Port Unmanaged PoE+ Switch

R 601.00
Price includes VAT

The Cudy FS1010P 10-Port 10/100M PoE+ Switch makes it easy to manage your home or office network. It ensures safe operation for non-standard PoE devices while conforming to the IEEE802.3af/at standards, with a total PoE power capacity of 120 W and the ability to deliver up to 30 W of power to a single PoE port.

The PoE watchdog feature monitors the connectivity status of remote PoE devices in real-time. If an issue with a remote PoE device is detected, the PoE switch immediately performs a restart to restore normal operation.

It's a simple, plug-and-play solution that's really easy to use. Its fanless design ensures silent operation, and the long-lasting metal case provides longevity and excellent heat dissipation, making it suited for a variety of situations.

The pin assignment is as follows: 1/2 (positive), 3/6 (negative), making it compatible with a wide range of devices. It works well with IP cameras in both the home and workplace, VoIP phones for professional conferences, and WiFi access points for office and commercial applications.

FEATURES:

  • Support IEEE802.3at and IEEE802.3af Standard
  • 120W PoE power output, up to 32W for one PoE port
  • Support IEEE802.3x full duplex and half duplex ?ow control
  • Support VLAN and CCTV Function
  • Panel lights to monitor working state and help fault analysis
  • Perfect security mechanism
  • Line-speed forwarding intelligent identi?cation

SPECIFICATIONS:

  • PoE standard: IEEE802.3af/at
  • Interface: 10*10/100Mbps The RJ45 port through consultation
  • Key function: CCTV&VLAN
  • PoE port: 1~8 port
  • PoE Total: 120W
  • Power supply: 120W
  • RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6
  • PoE output-port: Max 32W
  • Indicator: PWR, LNK/ACT, PoE
  • Network media:
    • 10BASE-T: UTP category 3, 4, 5 cable(?100m)
    • 100BASE-TX: UTP category 5, 5e cable(?100m)?
  • MAC Address Table: 8K, Automatic study, automatic updates
  • Jumbo frame: 1528Bytes
  • Packet Neck Scarfer: 2M bit
  • Transfer Mode: Store-and-forward
  • Packet forwarding rate: 1.48Mpps
  • Bandwidth: 2M bit
  • Fan: Fanless
  • Mains Input: 100~240V AC, 50/60Hz
  • Surge Protection: ±4KV
  • MTBF: >50000 hour
  • Electrostatic standard: Contact 4KV, air 6KV
  • Colour: Grey
  • Product Dimensions: 20 x 18 x 4.4 cm
  • Product Weight: 1000g

WHAT'S IN THE BOX:

  • Cudy FS1010P 10-Port 10/100M PoE+ Switch - Grey x1
  • Power Adapter x1
