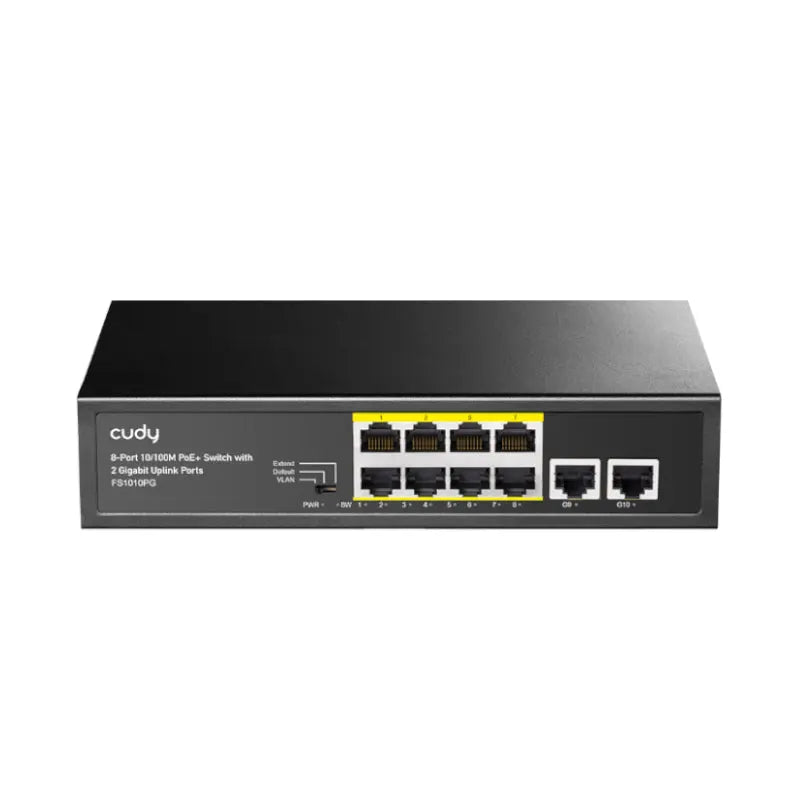

Cudy 10-Port Unmanaged PoE+ Switch

The Cudy FS1010PG 10-Port 10/100M PoE+ Switch allows you to manage your home or office network with ease. It features 8 Ethernet PoE ports and 2 uplink ports. Its RJ-45 connectors support any 10/100Mbps Ethernet devices and its compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1010PG works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to help dissipate heat quickly and ensure stable product operation. The Cudy FS1010PG can also be easily mounted to a wall or onto a rack to make installation more convenient.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

• Support IEEE802.3at and IEEE802.3af Standard
• 120W PoE power output totally, up to 32W for one PoE port
• Support IEEE802.3x full-duplex and half-duplex ?ow control
• Support VLAN and CCTV Function
• Panel lights to monitor working state and help fault analysis
• Perfect security mechanism
• Line-speed forwarding intelligent identi?cation

SPECIFICATIONS:

• PoE standard: IEEE802.3af/at
• Interface: 10 x 10/100Mbps The RJ45 port through consultation
• Key function: CCTV&VLAN
• PoE port: 1~8 port
• PoE Total: 120W
• Power supply: 120W
• RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6
• PoE output-port: Max 32W
• Indicator: PWR, LNK/ACT, PoE
• Network media:
  • 10BASE-T: UTP category 3, 4, 5 cable(?100m)
  • 100BASE-TX: UTP category 5, 5e cable(?100m)?
• MAC Address Table: 8K, Automatic study, automatic updates
• Jumbo frame: 1528Bytes
• Packet Neck Scarfer: 2M bit
• Transfer Mode: Store-and-forward
• Packet forwarding rate: 1.48Mpps
• Bandwidth: 2M bit
• Fan: Fanless
• Mains Input: 100~240V AC, 50/60Hz
• Green energy saving: Support IEEE?802.3az)
• Surge Protection: ±4KV
• MTBF: >50000 hour
• Electrostatic standard: Contact 4KV, air 6KV
• Colour: Grey
• Product Dimensions: 22 x 15 x 4.4 cm
• Product Weight: 1000g

WHAT'S IN THE BOX:

• Cudy FS1010PG 10-Port 10/100M PoE+ Switch - Grey x1
• Power Adapter x1
